Home  > Metal Working  > TRINOFLEX Pipe Belt Sander And Belt File Set
Support Product data sheet

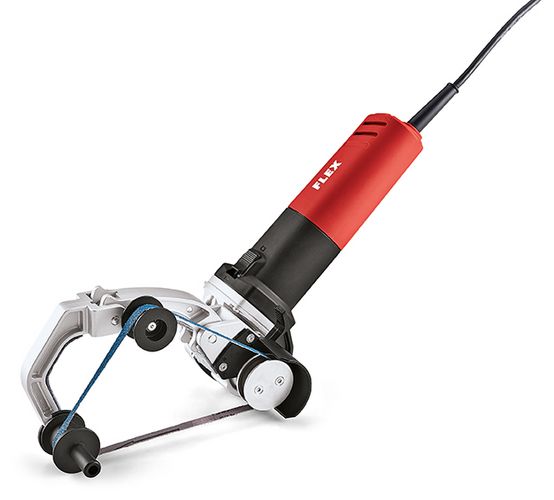

TRINOFLEX Pipe Belt Sander And Belt File Set

RRP : $1,499.00

Categories: Metal Working

SKU: BRE8-4 Category: Metal Working Tag: Metal surface treatment
Buy Now OnlineFind a store
Power input 800 watt
Power output 425 watt
Belt speed max. 8 m/sec
Belt speed min. 3 m/sec
Belt width 4-30 mm
Belt length 533 mm
Pipe Ø max. 50 mm
No load speed 1400-4000 rpm
Cable length 4.0 m
Size (W x L x H) 320 x 210 x 195 mm
Weight 2.6 kg

1 sanding attachment pipe belt BR 50, without sanding
belt set ·
1 sanding attachment belt file BF 140, without sanding
belt set ·
1 replacement roller set BR 30 Set ·
2 sanding belts ZIRCOFLEX P 60, 4 mm ·
2 sanding belts ZIRCOFLEX, P 120, 4 mm ·
2 sanding belts ZIRCOFLEX, P 60, 9 mm ·
2 sanding belts ZIRCOFLEX, P 120, 9 mm ·
2 sanding belts ZIRCOFLEX, P 60, 30 mm ·
2 sanding belts ZIRCOFLEX, P 120, 30 mm ·
1 sanding belt MESHFLEX A 240, 9 mm ·
1 sanding belt MESHFLEX A 240, 30 mm ·
1 side handle ·
1 hexagon socket wrench, SW 4 ·
1 hexagon socket wrench, SW 5 ·
1 hexagon socket wrench, SW 6 ·
1 carrying case L-BOXX® 136 ·
1 case insert

  • Microprocessor control: speed selection, tachogenerator constant speed control, soft start, restart protection after power failure, overload protection and temperature monitoring
  • Unique tool attachment with quick-action coupling for tool-free changing of the system attachments for burnishing, pipe belt sanding, filing
  • Completely cast electronic components prevents damage due to metal dust. The 3-fold winding protection reduces motor wear, increases service life
  • Sanding belt replacement: quick and tool-free
  • Sanding belt dimension: 533 x 4 – 30 mm
  • High-quality, spring-mounted sanding arm: light alloy with 2 deflection rollers. For optimum wrap-round on pipes, up to max. 270°
  • Spindle lock

Similar
Products

More
  • FLEX 2400 Watt Angle Grinder T-Rex, 230mm
    COMING SOON

    Microprocessor control with soft start, restart protection after power failure, overload protection, CDC-electronic feedback control Anti-Kickback…

    Learn more

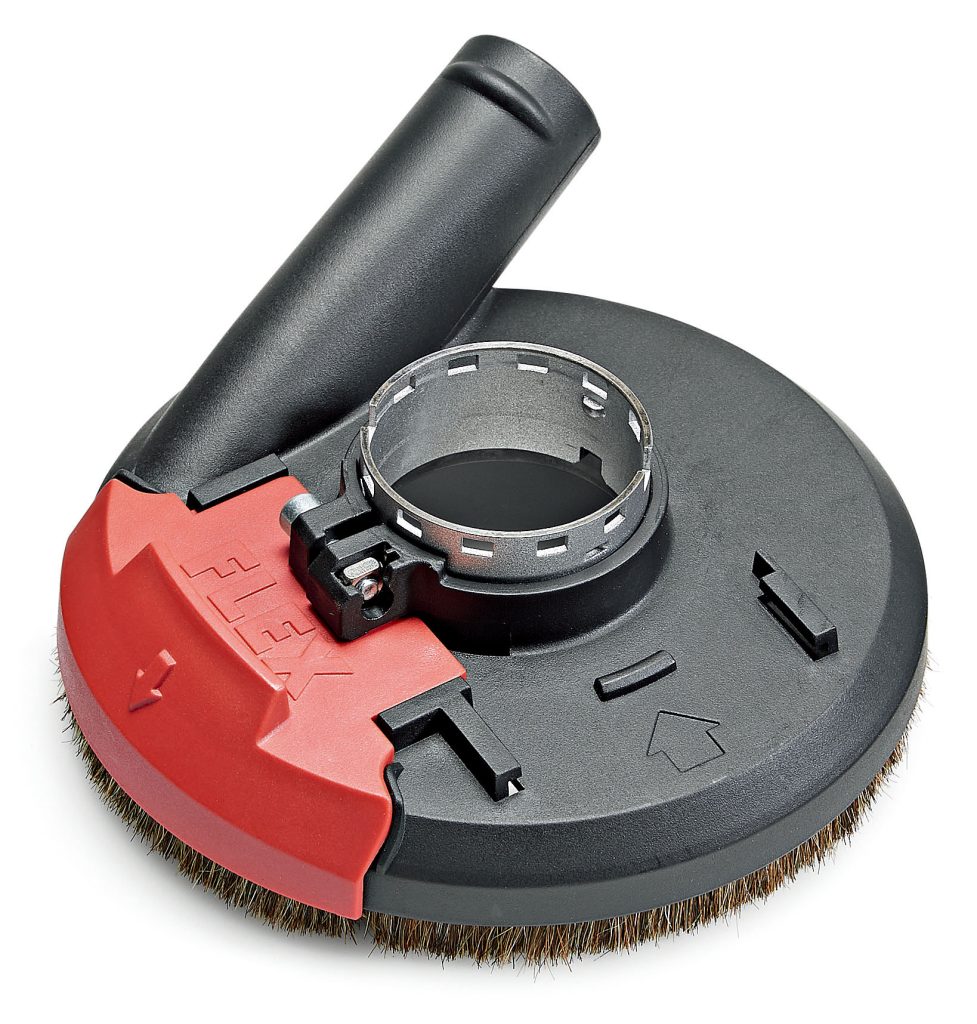

  • FLEX 125mm Extraction hood with removable edge segment

    Learn more

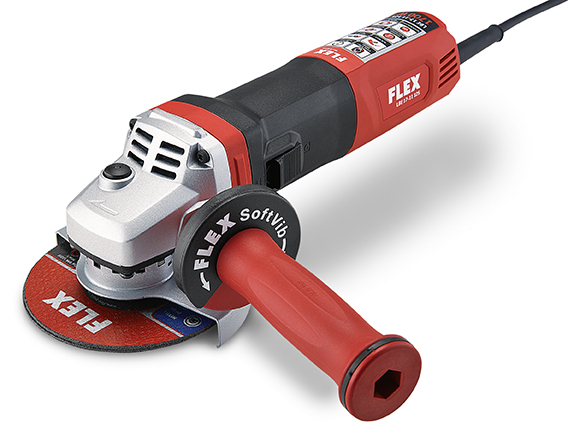

  • FLEX 1700 Watt Angle Grinder With Brake, 125mm

    Microprocessor control with soft start, restart protection after power failure, overload protection, CDC-electronic feedback control Highly…

    Learn more

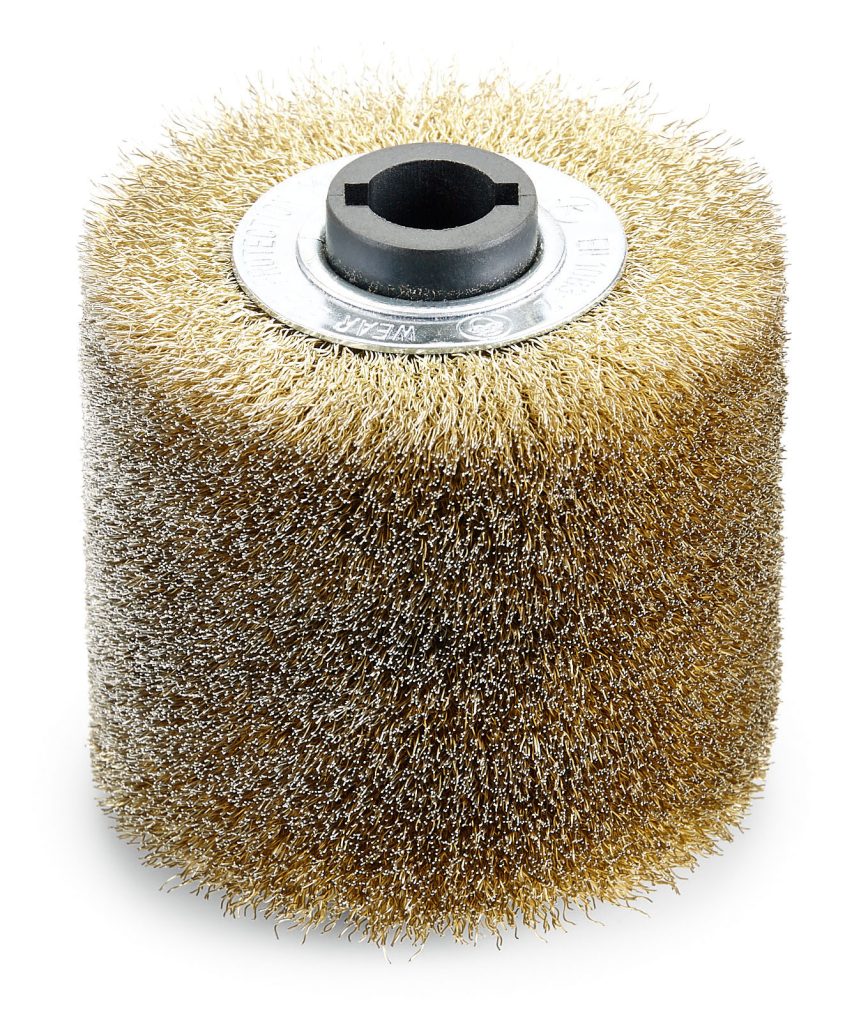

  • FLEX 100mm x 85mm Steel stranded wire brush – Suits BBE 14-3 110

    Learn more

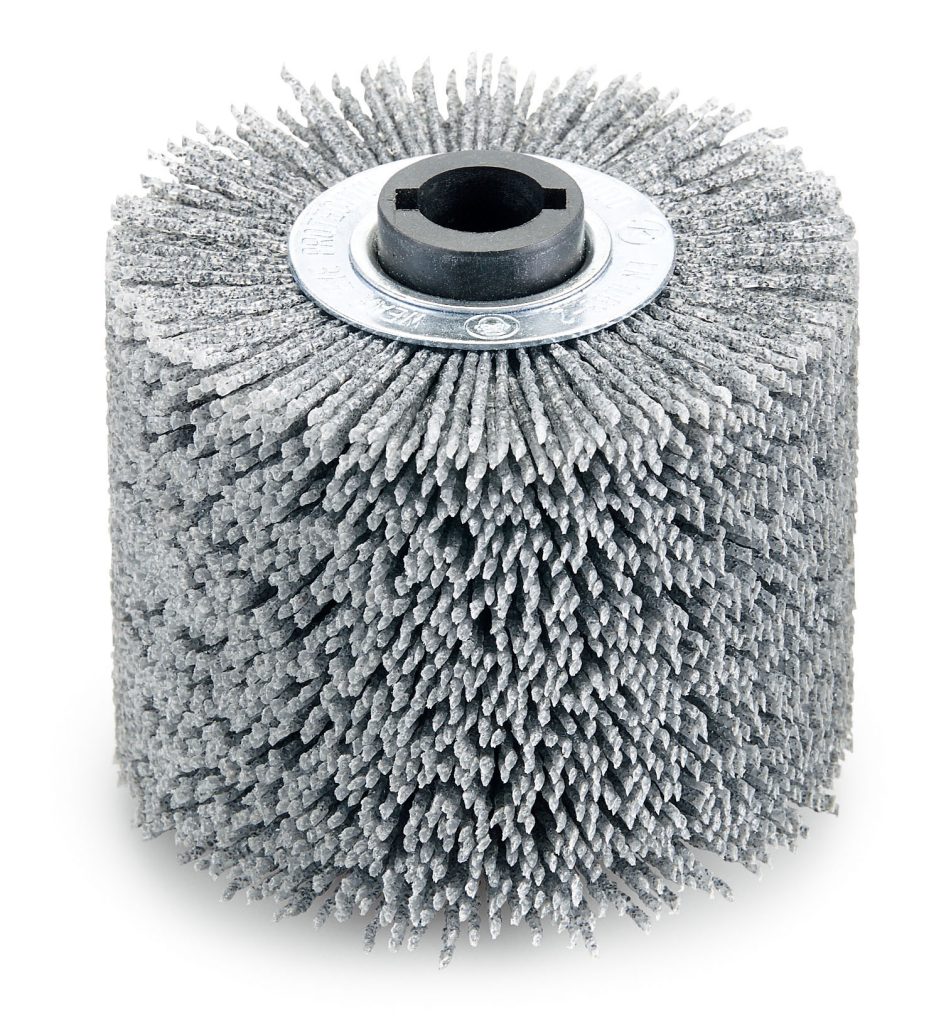

  • FLEX 110mm x 85mm Nylon brush – P46 – Suits BBE 14-3 110

    Learn more
  • FLEX Variable-Speed 1700 Watt Angle Grinder With Brake, 125mm

    Microprocessor control with soft start, restart protection after power failure, overload protection, CDC-electronic feedback control With…

    Learn more

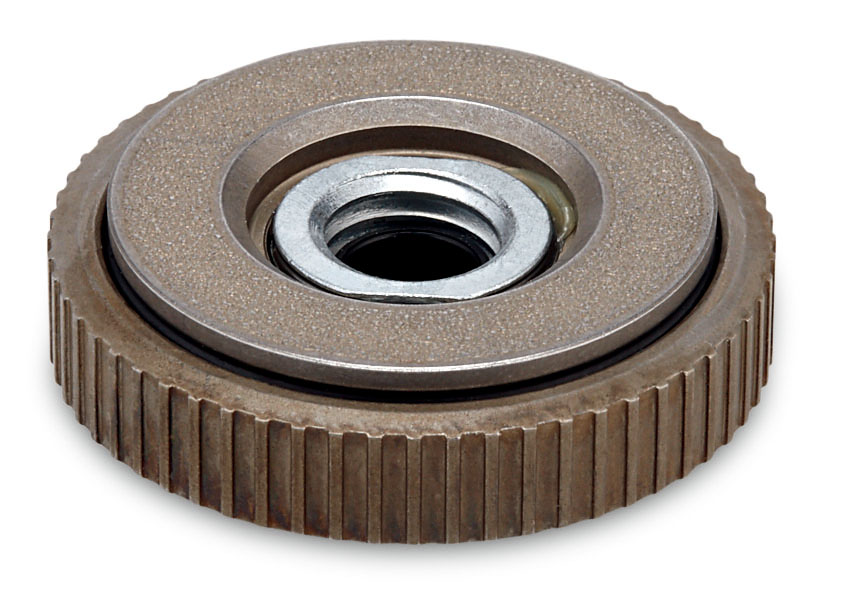

  • FLEX SDS-Clic quick-clamp nut – Suits L21-8 180 / L26-6 230 Grinder

    Learn more

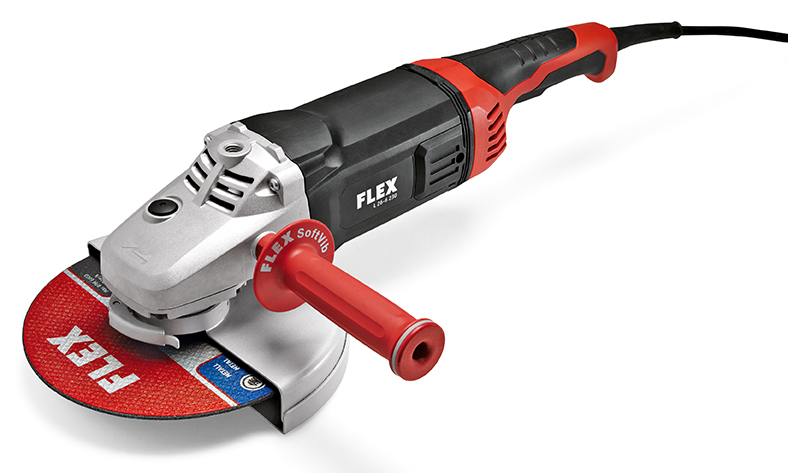

  • FLEX 2100 Watt Angle Grinder, 180mm

    Robust motor housing and gearbox housing. Stable and robust steel gearbox as well as a spindle…

    Learn more

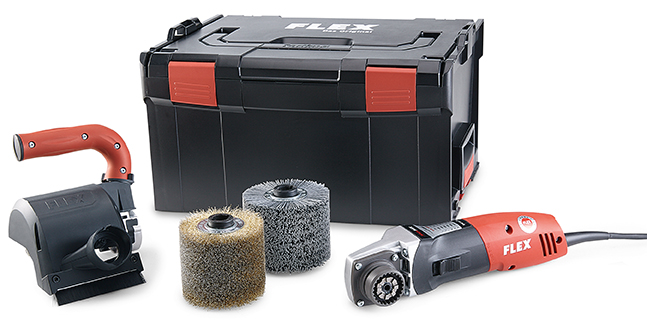

  • TRINOXFLEX Brushing Machine Set
